Buffer Tanks
PC 15-35-60

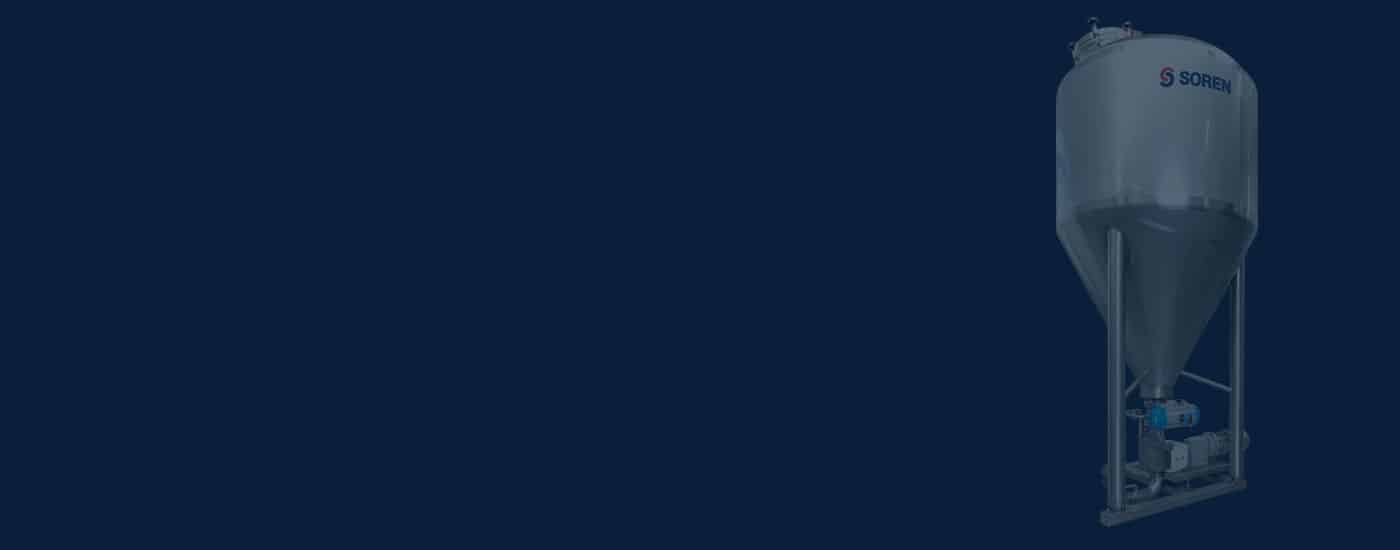

Our standard buffer tanks come in three models.
These three models differ from each other by the angle of their cone bottom, specifically designed to better allow the discharge of the product: the higher the viscosity, the steeper the angle.
The standard features are:
| Material in contact with product: AISI 316L |
| Dome top with circular manhole, dim: 420 mm |
| Cone bottom with 15°/35°/60° angle |
| Hand-welded double jackets on walls and bottom for water or steam circulation, with a maximum operating pressure: 4 bar |
| Mineral wool insulation covered with AISI 304 sheet |
| Anchor agitator with scraper blades |
| Baffle |
| Inside surface finish: fine polished |
| Outside surface finish: 2B |
| Connections for ingredients feeding |
| I.P. connections with washing balls |
| Vent |
| Adjustable sanitary feet |
Your products
PC 15-35-60
Our standard buffer tanks come in three models.
These three models differ from each other by the angle of their cone bottom, specifically designed to better allow the discharge of the product: the higher the viscosity, the steeper the angle.
The standard features are:
- Material in contact with product: AISI 316L
- Dome top with circular manhole, dim: 420 mm
- Cone bottom with 15°/35°/60° angle
- Hand-welded double jackets on walls and bottom for water or steam circulation, with a maximum operating pressure: 4 bar
- Mineral wool insulation covered with AISI 304 sheet
- Anchor agitator with scraper blades
- Baffle
- Inside surface finish: fine polished
- Outside surface finish: 2B
- Connections for ingredients feeding
- I.P. connections with washing balls
- Vent
- Adjustable sanitary feet
